OFF ROAD AND CAMPING

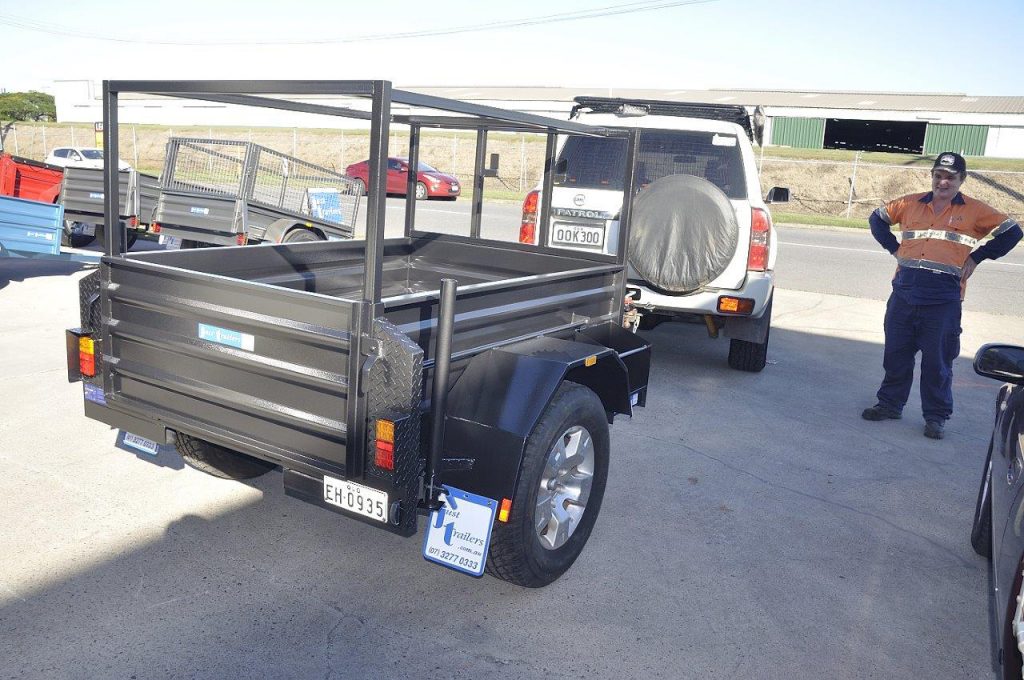

Semi Off Road 7x4 trailer

6 x 4 or 7 x 4 Semi Off Road Models6 x 4 or 7 x 4 Full Off Road Models
Internal Dimensions 1800mm or 2100 mm x 1200mm x 510mm Same (as Semi Off Road)
Structural Capacity900kg1000kg
Tare (Trailer Weight)300kg/320kg360kg
Suspension/Spring5 LEAF Anti Rattle With Double Keepers7 Leaf Long 1500kg Off Road Rebound Shackle Springs with Custom Shockers 1000kg
Axle45mm Round s1040 – Standard S/L Bearings45mm Solid Round with Parallel Bearings
Chassis/Drawbar75 x 50 x 2.5mm RHS One Piece from Coupling to Rear Cross Brace. Drawbar, 1500 From Front, Cross Braces: 2 x 40 x 40 x 2mm SHS Rear Cross Brace 75 x 50 x 2.5mm RHS75 x 50 x 3 mm RHS One Piece from Coupling to Rear Cross Brace. Drawbar, 1800 From Front, Cross Braces: 4 x 40 x 40 x 2.5 mm SHS Rear Cross Brace 75 x 50 x 2.5mm RHS
Corner Post50 x 50 x 2.5mm RHSSame
CouplingQuick Release – Adjustable – 2000kgTrigg Polyblock or ARK Off Road Ball Coupling
Wheels & Tyres OE 16” 6 Stud Wheels, Tyres: SH or Optional New TyresSame
Lights2 LED’s A.D.R. Approved, with Protective Surrounds, White, Amber & Red Reflectors as required.Same
FinishZinc Rich Primed, Two Coats of Industrial Enamel Optional: Hot Dipped GalvanisiedSame
Features16mm Tie Rails on Sides, Spare Wheel Bracket - Removable Tailgate, Mud Flaps, 2 x Jerry Can Holders , Toolbox Mounts , Folded Step Reinforced Mudguard Front & Rear, Safety Chains 16mm Tie Rails on All Sides, Spare Wheel Bracket - Removable Tailgate, Mud Flaps, 2 x Jerry Can Holders , Toolbox Mounts , Folded Step Reinforced Mudguard Front & Rear, Safety Chains
BodySides, Front & Tailgate: Ribbed 1.6mm . Floor: 2.1mm C/Plate Same
